EcoSparc ZAP TRUCK XL/XR 100/150 Mile Range 26 KW AC Motor
EcoSparc Motors
Performance Specifications

SPEED: Up to 25 mph In NEV computer
controlled mode.  45 to 50 MPH ehn used
in Off Road mode.

RANGE: Up to 150 miles in NEV mode
and 100MIles in off road mode

Payload: 1500lbs off road 1000 lbs on road

Hill Climb capability: 25 degress continous,
30 degrees momentary.


Technical Specifications

CHARGER: On-board 110 Volt AC

WHEELBASE: 81.9"

STEERING MECHANISM: Rack and Pinion

BRAKING MECHANISM: Dual-circuit front
disk / Rear drum

FRONT SUSPENSION: Coil Spring

REAR SUSPENSION: Leaf Spring

GVWR: 2998 lbs

BATTERY TYPE: Lithium Ion 25.6KW pack
with on board computer battery
management system (BMS)

MOTOR: 128 Volt AC

RATED CURRENT: 200A

BATTERY CHARGING SYSTEM: 90-260
Volt input / 12V input / 12A output in 120VAC
mode 40 amps in 220 VAc mode

CHARGING TIME: 12 hour max charging

BATTERY TYPE: Lithium Ion 3.2 v cells
200AH x40.  Yeild 3000 charges based on
a 70% discharge per cycles
This Truck use a 26 Kilowatt AC motor with
regenerative breaking and coasting to reach
ranges of over 150 miles at 25 Miles (NEV)
per hour or 100 miles at 45 to 50 MPH off
road.

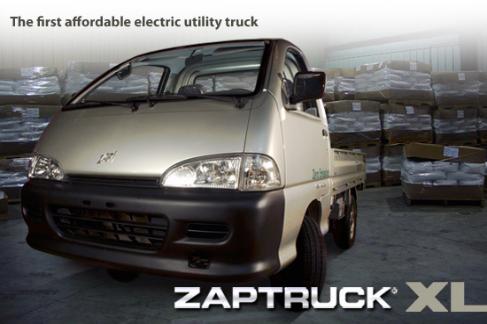

Roomy, durable, rugged yet whisper quiet.
The new ZAPTRUCK XL is the affordable
green solution of your fleet operations. A
utilitarian workhorse providing a roomy cab
for two and a convertible bed/platform for
moving up to 1900 lbs. of cargo during
off-road use.

Ideal Off Road use for Corporate Campuses,
Warehouses, Universities, Factories,
Municipal Operations, Government Facilites,
Golf Courses, Amusement Parks, Airports,
and around the ranch or farm.

Classified as an NEV (Neighborhood
Electiric Vehicle) the ZAPTRUCK XL is
speed-limited by its controller to travel at
speeds up to 25 to 30 mph.  In the off road
mode it can acheive speeds of 45 to 50 mph
in about 8 seconds depending on the bed
load.

Conservative driving styles and acceleration
is required to achieve published ranges.
Terain will also effect range.
MSRP is $29,248.00.  Tax, Licences, and shipping are extra.  Bed cap and bed
